Tracking draaitafel
Created with Pixso. High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking

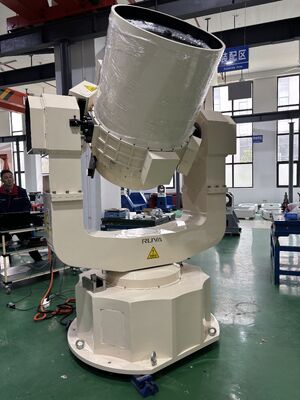

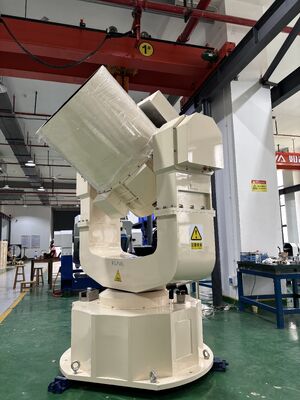

High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking
  • Naam
  • Naam

High Precision Direct-drive Dual-axis Tracking Turntable with Wide Azimuth Range for Satellite Tracking

Merknaam: RUYA
Moq: 1 Instellen
Prijs: Onderhandelbaar
Leveringstermijn: 3-4 maanden
Betalingsvoorwaarden: T/T
Detailinformatie
Productomschrijving
Detailinformatie
Plaats van herkomst:
China
Certificering:
ISO 9001
Opening van de telescoop:
≥600 mm
Hoogtewaaier:
-5° tot 95
Mechanische limiet voor pitch:
-10º tot +100°
Azimut-rotatiebereik:
-270° tot 270°
Hoekpositieresolutie:
≤ 0,36″
Positioneringsnauwkeurigheid:
≤ 2″
Herhaalbaarheid:
≤ 2″
Het richten van Nauwkeurigheid:
<5″
Verpakking Details:
HOUTEN KIST
Levering vermogen:
≤ 3 sets, 3 maanden
Markeren:

direct-drive satellite tracking turntable

,

dual-axis tracking turntable with warranty

,

wide azimuth range tracking turntable

Productomschrijving
Direct-drive Dual-axis Tracking Turntable
Product Overview

The direct-drive dual-axis tracking turntable is a TL-type two-dimensional tracking device with two degrees of freedom (azimuth and pitch). It simulates satellite pointing and attitude on the ground while eliminating the effects of Earth's rotation. This system serves as a ground receiving station for quantum communication and laser communication satellites, working in conjunction with satellite transmitters to complete satellite-to-ground quantum and laser communication operations.

With customer-defined software control and guidance designs, the turntable is capable of tracking low-orbit satellites with high precision and reliability.

Technical Specifications
  • Telescope aperture: ≥600mm
  • Sight axis pointing capability
  • Dual protection: mechanical limit and electronic limit
  • Pitch range: -5° to 95°
  • Pitch mechanical limit: -10º to +100°
  • Azimuth rotation range: -270° to 270°
  • Angular position resolution: ≤ 0.36″ (dual-axis)
  • Positioning accuracy: ≤ 2″ (3σ, dual-axis)
  • Repeatability: ≤ 2″ (3σ, dual-axis)
  • Zero position setting capability with real-time absolute position feedback via RS422
  • Tracking speed: Azimuth 0.004°/s～10°/s; Pitch 0.004°/s～2°/s
  • Tracking acceleration: Azimuth 0°/s²～1.5°/s²; Pitch 0°/s²～1°/s²
  • Pointing accuracy: <5″ (1σ) @ elevation angle 20°～80°
Environmental Specifications
  • Working temperature: -40℃～+60℃
  • Storage temperature: -55℃～+70℃
Note: Environmental specifications can be customized according to requirements.
